Hyper-a Hyperspectral absorption instrument

LISST-SL2

Streamlined Isokinetic Sediment Flux Sensor

View Gallery

The LISST-SL2 is Sequoia’s most powerful multi-parameter river sediment monitoring instrument. Delivers real-time Point-Integrated, Depth-Integrated, or time-series data. Replaces old technology samplers.

The streamlined body is a minimum drag shape. In measures depth, velocity, temperature, concentration and size distribution of sediments and other auxiliary parameters. Based on laser diffraction.

The system employs active control of an intake pump that matches intake velocity to river velocity (iso-kinetic). [The features section below lists new features.]

For video introduction, click here.



Updated 24 August 2017

Features

  • The LISST-SL2 has a greatly simplified user interface compared to the original LISST-SL.
  • Uses laser diffraction; new: redesigned optics cover expanded grain size range, 1-500 microns (from 2-386 microns for LISST-SL)
  • Isokinetic; new: advanced pump control.
  • 2-wire special communication protocol consistent with USGS B-reel use.
  • Topside Box (TCB) contains batteries, and transfers data to laptop computer using blue tooth.
  • Display on computer shows battery life remaining, and issues warning when low.
  • Real-time display: Current speed, temperature, concentration, grain size distribution, depth, mean sediment grain size.
  • New: software delivers point-integrated and depth-integrated sediment data.
  • Blue-tooth data link permits operation out of weather.
  • Switch between ft and ft/s or m and m/s for depth and velocity units.
  • Real-time data processing permits time-series or vertical profile format for all data.
  • Easier storage and maintenance after use.

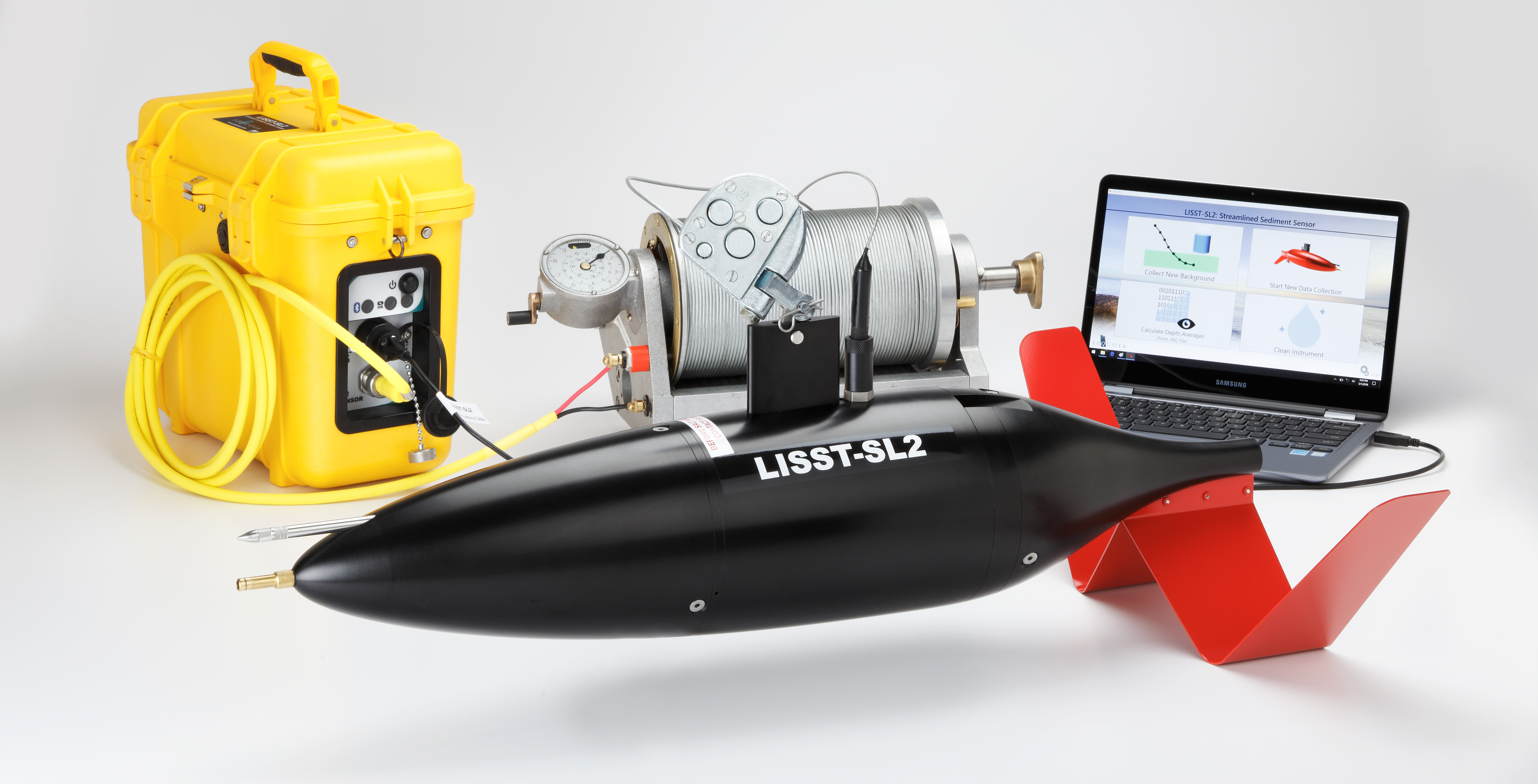

A major difference between the LISST-SL2 and other LISST instruments is that the LISST-SL2 is only a sensor. It cannot operate autonomously and no data can be stored on the instrument itself. The LISST-SL2 must be  connected using a USGS B-Reel to a Topside Control Box (TCB). The TCB contains a rechargeable battery and electronics. It supplies power down the B-Reel cable to the LISST-SL2, and receives the raw scattering data from the LISST-SL2. These data are transmitted via blue-tooth to a nearby laptop, or tablet (Windows only). Using the computing power of the laptop, raw data are processed on the laptop in real-time, and all results are displayed [e.g. optical transmission, velocity, depth, temperature, particle size distribution, total concentration…]. The operator can choose time-series view, or vertical profile view. Post processing software generates point-integrated or depth-integrated concentrations – thus providing data that has historically been collected laboriously with bottle samplers. In addition, when concentrations are combined with velocity data, sediment flux (transport rate) is also obtained. The data are so rich that interested scientists may easily obtain flux of particles in 36 distinct size classes!

All data, raw and processed, are output in user-friendly formats.

Specifications

Specifications are subject to change without notice

Sediment Concentration Range

  • Range: 15 – 12,000 mg l-1 for 30-micron narrow size grains . For other sizes and broader distributions, click here.
  • Resolution: < 10 mg l-1.
    Material  SSC [mg/l] @ 98% optical transmission  SSC [mg/l] @ 30% optical transmission  D10[µm]  D50[µm]  D90[µm]  SMD[µm]
    ISO Fine
    (ISO 12103-1,A2)    		  15 1,150 1.5 7 41 3
    ISO Coarse
    (ISO 12013-1,A4)    		  67  2,500  4  38  99 10
    Whitehouse20-30 µm glass beads  130  7,400  19  24  34 24
    Sieved sand 75-125 µm  215  13,500  85  122  175 112

Size Range

  • 1-500 µm in 36 log-spaced size classes.

Depth Range

  • 0.15-30 m @ 0.02 m resolution.

Current Speed Range

  • 0-3 m/s @ 0.03 m/s resolution.

Water Temperature Range

  • 0-25C @ 0.1 C resolution.

Sample Acquisition Time

  • 2 seconds for a 16 sample average
  • Average value subsequently transmitted to the Topside Control Box for immediate display

Mechanical and Electrical

  • Dimensions (SL2): 17 cm (6.7”) maximum Ø × 87 cm (34.2”) L
  • Topside Box: 16.4″ (41.7cm) x 8.7″ (22.1cm) x 13.2″ (33.4 cm)
  • Weight in air / submerged (SL): 19.5 kg (43 lbs) / 8.2 kg (18 lbs)
  • Topside Box: 8.6 kg (19 lbs)
  • Rechargeable battery life: 6 hours (nominal; longer available)

Accessories

LISST-SL2 Item # and Description

Item #DescriptionThumbnail
SEQ-FP-LSL2LISST-SL2 Sediment Size Distribution Sensor
1.00-500 um size range
30 m depth rating.
Includes:

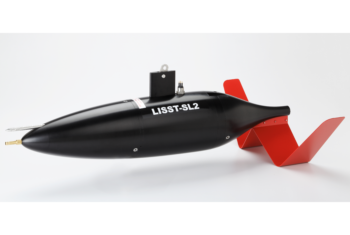

Streamlined submersible sensor
Topside control box with built-in rechargeable battery
battery charger
Cables
Pelican shipping container with custom foam cushioning
Windows software for programming, real-time data display, data offload and data analysis.
USGS B-56 style cable/winch or equivalent is required and is available separately. See LISST-SL2 accessories.
SEQ-AC-LSL2-EW1-YEAR EXTENSION OF LIMITED WARRANTY AND LIABILITY
Must be purchased together with new instrument.		No picture
SEQ-AC-LSL2-SERV3-YEAR SERVICE PLAN
One-time service of instrument within 36 months after delivery.
Includes one-way return shipping from Sequoia, all evaluation, diagnosis, testing and calibration.
Parts and labor for repairs not included.
Must be purchased together with new instrument.
NOTE: End-user responsible for return shipment DDP to Sequoia.		No picture

LISST-SL2 Accessories *NOT INCLUDED* with LISST-SL2

Item #DescriptionThumbnail
SEQ-AC-LSL2-B56FUSGS Sounding Reel, B-56 modified for LISST-SL2
The B-56 Sounding Reel is used to position the LISST-SL2 in a river. The reel has 115 feet (35.1 m) of 0.125 inch (0.32 cm) two conductor steel cable. The reel is equipped with a depth indicator which displays depth in feet (Imperial), a clutch for controlling free-fall speed of the LISST-SL2 and a slip-ring for the two conductors. Includes underwater connector for mating to LISST-SL2. *Note, 26 Week Leadtime
LISST-SL2 B-reel

LISST-SL2 B-reel
SEQ-AC-LSL2-B56MUSGS Sounding Reel, B-56 modified for LISST-SL2
The B-56 Sounding Reel is used to position the LISST-SL2 in a river. The reel has 115 feet (35.1 m) of 0.125 inch (0.32 cm) two conductor steel cable. The reel is equipped with a depth indicator which displays depth in meters (Metric), a clutch for controlling free-fall speed of the LISST-SL2 and a slip-ring for the two conductors. Includes underwater connector for mating to LISST-SL2.
*Note, 26 Week Leadtime
LISST-SL2 B-reel

LISST-SL2 B-reel
SEQ-AC-LSL2-BPTUSGS Sounding Reel B-56 5-position adapter pigtail
SEQ-AC-LSL2-SECLISST-SL2 Sensor Extension Cable
0.5 m long, 5-pin Male to 5-pin Female
Provides an extended connection between the LISST-SL2 sensor and B- Reel cable end.
SEQ-AC-LSL2-TERMLISST-SL2 - B-Reel Termination
For free-issued B-Reels, shipped DDP to Sequoia
Including: potting of cable, mating of cable to purchased LISST-SL2, verification of operation, connection cable.

LISST-SL2 Accessories *INCLUDED* with LISST-SL2

Item #DescriptionThumbnail
SEQ-AC-LSL2-TSLISST-SL2 Topside control box.
Included with LISST-SL2 instrument.
Picture showing the LISST-SL2 topside unit.

LISST-SL2 topside unit with closed lid.

FAQ

Can I use the LISST-SL2 in salt water?

No.

The LISST-SL2 is designed for FRESH WATER USE ONLY. It cannot be used in salt water, or in estuarine conditions with a salt wedge. It is intended for fresh water use ONLY.

Can I rent the LISST-SL2?

Yes. Sequoia has a rental unit available. The minimum rental period is one (1) month and the first month’s rent must be prepaid in full before the instrument is delivered. Subsequent months are invoiced at net 30 days payment terms. User must pay for the return shipping to Sequoia, and insure the instrument for the full price for the duration of the rental period as well as the return shipping.

If you decide to purchase a new instrument within 90 days after the beginning of the rental period, you can apply 85% of what you already paid in rental fees towards the cost of the new instrument.

Call for a draft rental agreement.
